Industrial multi-tank auto parts engine block ultrasonic cleaning machine with rinsing tank and drying tank

FOB Reference Price:Get Latest Price
US $6,000-22,000 / Pieces | 1 Piece/Pieces heavy duty ultrasonic cleaner offered by any QTY (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Industrial Ultrasonic Cleaner
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
skymen
Model Number:
JP-3072G
Feature:
Rust / Corrosion Inhibitor, first ultrasonic tank+second rinsing tank+drying tank
Fuel:
Electric
Certification:
RoHS
Use:
Degreasing
Cleaning Process:
Solvent Cleaning
Cleaning Type:
Immersion / Soak
Industry Used:
automotive industry
Material:
Metal / Coil, Stainless Steel SUS304/SUS316
Power(W):
3600w
Dimension(L*W*H):
1000x600x600
After-sales Service Provided:
Engineers available to service machinery overseas
Size:
custom made available
Mobility:
four wheels to move easily
Solvent:
SUS316 for strong acid and alkaline
Sovent recycle:
filter system optional to move oil
Automatic:
automatic system optional
ultrasonic power:
900w,can be custom made
heating power:
3kw,can be custom made
frequency:
28khz/40khz/60khz/80khz/120khz
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month heavy duty ultrasonic cleaner supplied by any QTY
Packaging & Delivery
Packaging Details
wooden case
Port
Shenzhen or Hongkong
Lead Time :
immediate



Industrial multi-tank auto parts engine block ultrasonic cleaning machine with rinsing tank and drying tank











Ultrasonic cleaner removes dust, rust, oil, carbon, oxidation, burn mark, stain

cleaning effect

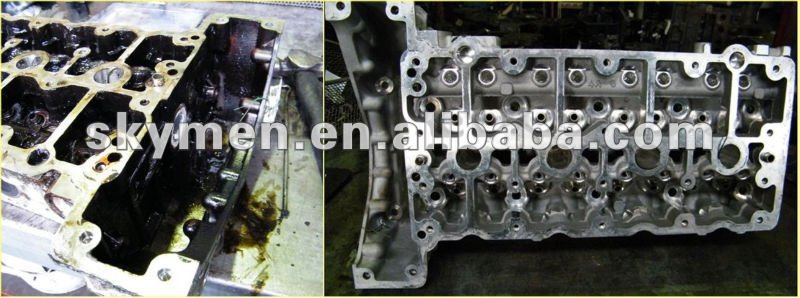

engine cleaning effect





 Please choose the size fits for you, or cotact for professional suggestions:



Model: Skymen™

JTS-1012

JTS-1018

JTS-1024

JTS-1030

JTS-1036

JTS-1072

TANK'S WORKING DIMENSION

 (mm)

L1

355

406

500

500

500

720



W1

305

305

355

406

460

680



H1

355

460

500

500

550

620

OVERALL DIMENSION (mm)

L2

535

586

680

710

710

940



W2

485

485

535

586

640

860



H2

750

680

720

720

770

850

TANK'S TOTAL CAPACITY

38L

56L

88L

101L

126L

303L



ULTRASONIC TRANSDUCER

12

18

24

30

36

72

ULTRASONIC OUTPUT POWER (MAX.)

600W

900W

1200W

1500W

1800W

3600W

ELECTRONIC GENERATOR

KG600

KG900

KG1200

KG1500

KG1800

KG3600



Build-in

Separate

HEATER'S (HOT PLATE) POWER

1.5kW

3kW

4.5kW

9KW



Industrial High Sonic Power Ultrasonic Cleaning Machine



JTS series single tank ultrasonic cleaner equipment system includes replaceable transducer box and generator. The transducer box and generator can be both build-in or separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank, one side or both side or bottom mounted inside the tank. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load. Specification of tank dimension and transducer boxes are custom made available. Either for mould of parts cleaning can receive perfect cleaning efficiency. Stainless steel basket is optional.







Model JTS-1072  high ultra sonic power  for industrial heavy duty cleaning



 total package



Remark:

1. tank size and other functions can be custom made

2. customer logo is acceptable

3. packing by wooden case

4. lead time is negotiable according to qty. and custom made requirements





Skymen Cleaning Equipment Shenzhen Co., Ltd., which engaged in ultrasonic cleaner field for more than 7 years. Our main products are ultrasonic cleaner with different capacity.

Our company is a famous ultrasonic manufacturer with R&D, production and sales. High quality product and after sales services is available from us.

Not only standard ultrasonic cleaner, any non-standard can be design by our engineer.





FAQ



FAQ:

Q:What are the advantages of Skymen ultrasonic cleaner over traditional cleaning methods?

A1.minimize the use of manual labor

 2.make cleaning and degreasing without the use of organic solvents

 3.clean hard to reach areas of products and remove all types of dirt

4.shorten the processes such as extraction, dispersion, purification, chemical reactions

5. eliminates costly mechanical and chemical cleaning of heat exchangers



Q: What frequency is better for my parts?

A:  Frequency is suggested based on pollutants in the objects.

28kHz frequency is stronger, better for car/motor/truck/vessel parts clean (remove oils, grease, pastes, etc. )

40kHz is better for pcb boards, electronic parts, etc.

Higher precision goods, higher frequency.



Q: Can ultrasonic cleaning damage parts?

A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe. No damage to your daily objects.



Q: What cleaning solution should I use?

A:A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.



Q: Is rinsing after cleaning cycles?

A: Rinsing is recommended to remove any chemical residue that could be harmful to the part. Details can be rinsed right in your ultrasonic cleaner or in a clean water bath or in a separate sink tap, distilled or deionized water.



Q:How about after sales services?

A: 1 Year warranty for Skymen ultrasonic cleaner.

If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
